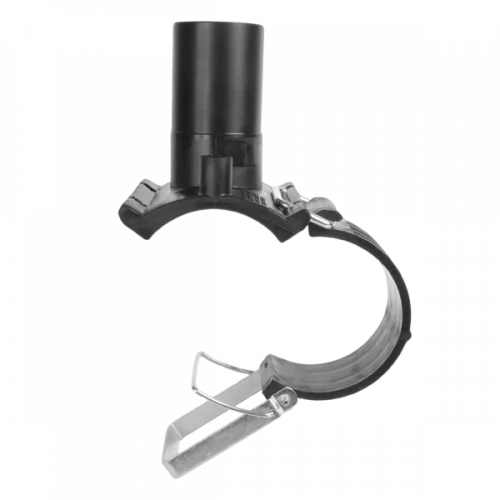

Branch saddle made of PE
- Material: PE100
- 40 – 63 mm outlet
- 4,0 mm pin
- with reinforced lower part
- pressure ratings: water 16 bar / gas 10 bar
Branch Saddle, PE100, black, for electrofusionen welding,
with lower clamp and clamping system,
4,0 mm Pin, permanently embossed batch labeling
SDR-class ….., pipe diameter d … / … mm
(manufacturer: STAR Piping Systems GmbH,Wesel
technical datasheets at www.star.de.com
Tel.: +49 281/98414-0 or similar)
We are happy to produce special dimensions and customized prefabrications for you on request.
Contact us - we are happy to advise you!Ideal addition:
