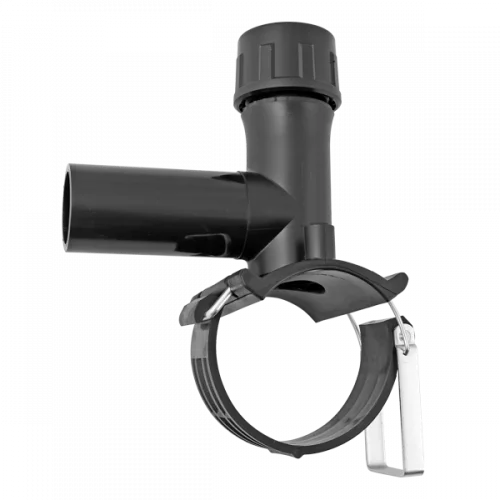

Tapping Tee made of PE for house connections and distribution pipes
- Material: PE100
- 20 – 63 mm outlet
- 4,0 mm pin
- to be processed with standard 12 mm tapping hexagon
- pressure ratings: water 16 bar / gas 10 bar
Tapping Tee, PE100, black, for electrofusionen welding,
with lower clamp and clamping system, outlet offset by 90 ° to the main pipe,
suitable for gas-free tapping,
4,0 mm Pin, permanently embossed batch labeling
SDR-class ….., pipe diameter d … / … mm
(manufacturer: STAR Piping Systems GmbH,Wesel
technical datasheets at www.star.de.com
Tel.: +49 281/98414-0 or similar)
We are happy to produce special dimensions and customized prefabrications for you on request.
Contact us - we are happy to advise you!Ideal addition:
Complete your selection with these matching products
General delivery program of our electrofusion fittings:
- Electrofusion coupler
- Electrofusion bend 11° – 90°
- Electrofusion elbow 45° and 90°
- Electrofusion tee equal / reduced / eccentric
- Electrofusion reducer
- Electrofusion end cap
- Flange connections: Electrofusion stub end / Electrofusion special flange/ Electrofusion KS special flange
- E-concrete shaft adapter: L=135mm / L=250mm
- Saddles: Tapping Tee / Branch Saddle / Transition Saddle / Balloon Saddle
