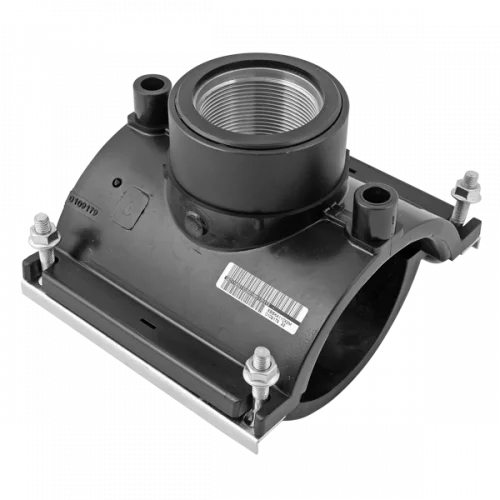

Transition Saddle made of PE for connecting irrigation systems
- Material: PE100
- 1 ½“ – 2“ outlet with female thread
- 4,0 mm pin
- Pressure ratings: Water 16 bar / Gas 10 bar
Transition Saddle, PE100, black, for electrofusionen welding,
with lower clamp and clamping system,
4,0 mm Pin, permanently embossed batch labeling
SDR-class ….., pipe diameter d … mm, male thread Rp ….“
(manufacturer: STAR Piping Systems GmbH,Wesel
technical datasheets at www.star.de.com
Tel.: +49 281/98414-0 or similar))
We are happy to produce special dimensions and customized prefabrications for you on request.
Contact us - we are happy to advise you!Ideal addition:
Complete your selection with these matching products
General delivery program of our electrofusion fittings:
- Electrofusion coupler
- Electrofusion bend 11° – 90°
- Electrofusion elbow 45° and 90°
- Electrofusion tee equal / reduced / eccentric
- Electrofusion reducer
- Electrofusion end cap
- Flange connections: Electrofusion stub end / Electrofusion special flange/ Electrofusion KS special flange
- E-concrete shaft adapter: L=135mm / L=250mm
- Saddles: Tapping Tee / Branch Saddle / Transition Saddle / Balloon Saddle
